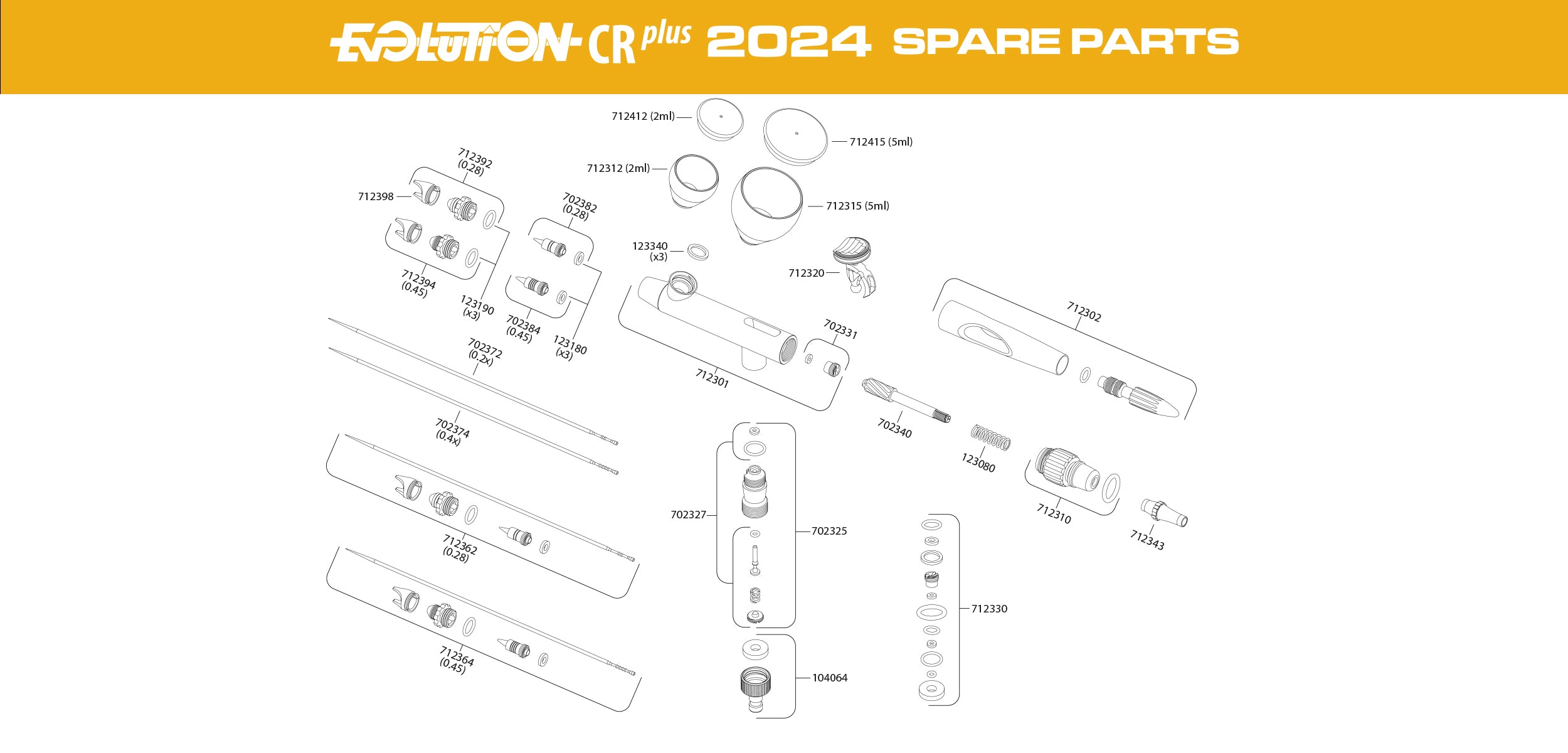

Spare Parts List

Please purchase from your H&S retailer - to find your local retailer click here.

123080 - EVOLUTION 2024 Needle Spring

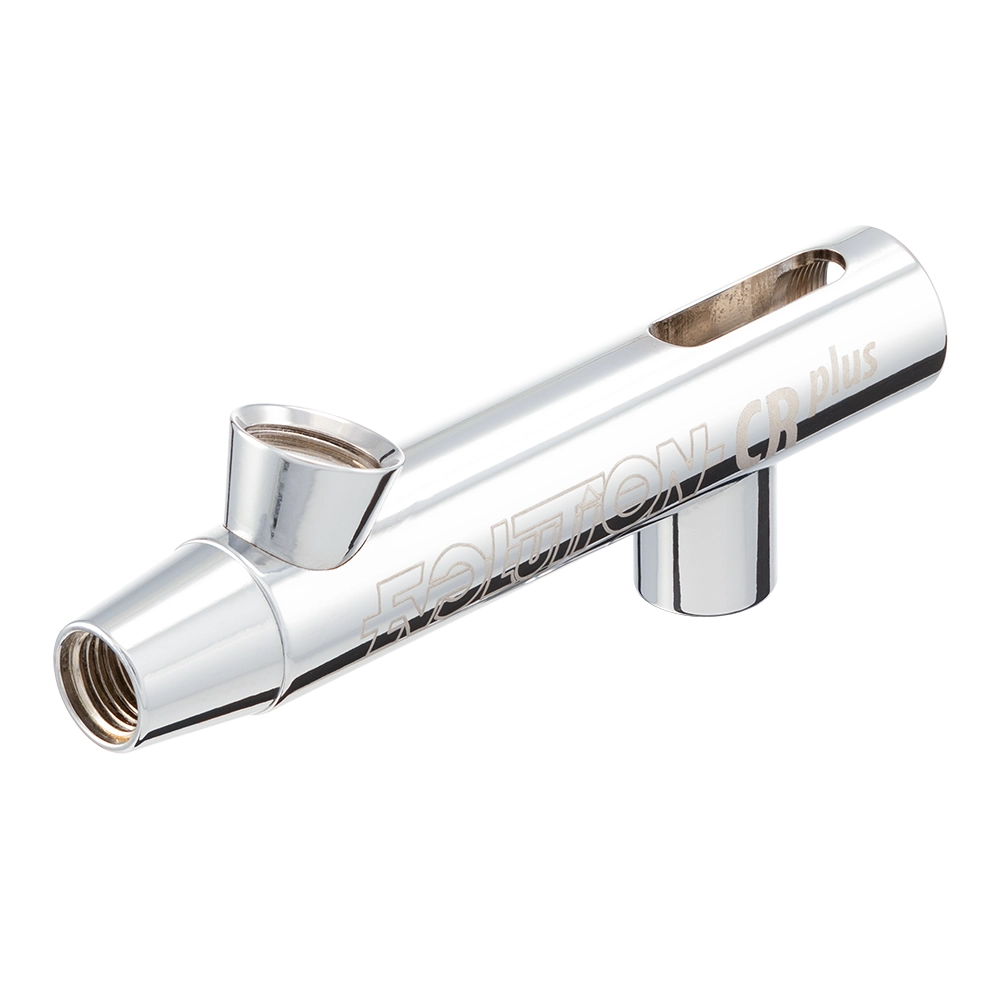

712301 - EVOLUTION 2024 body

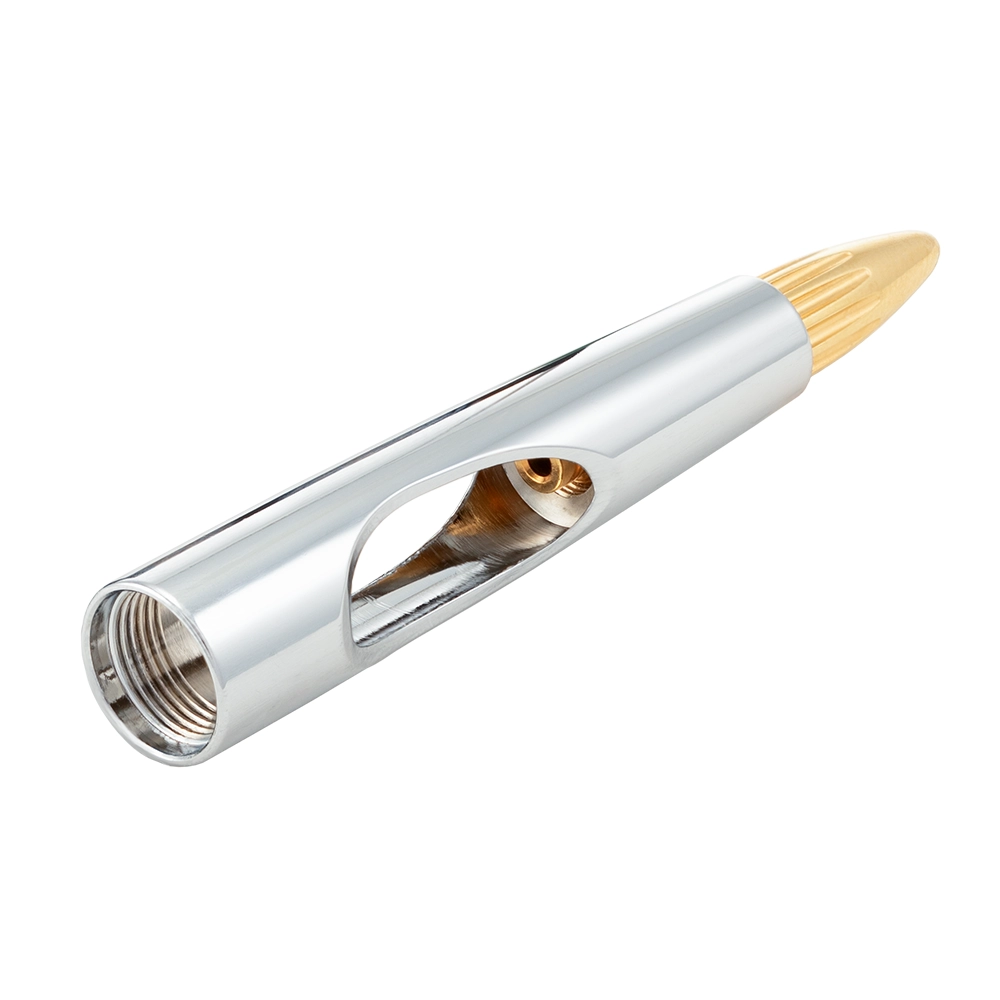

712302 - EVOLUTION 2024 Endpiece

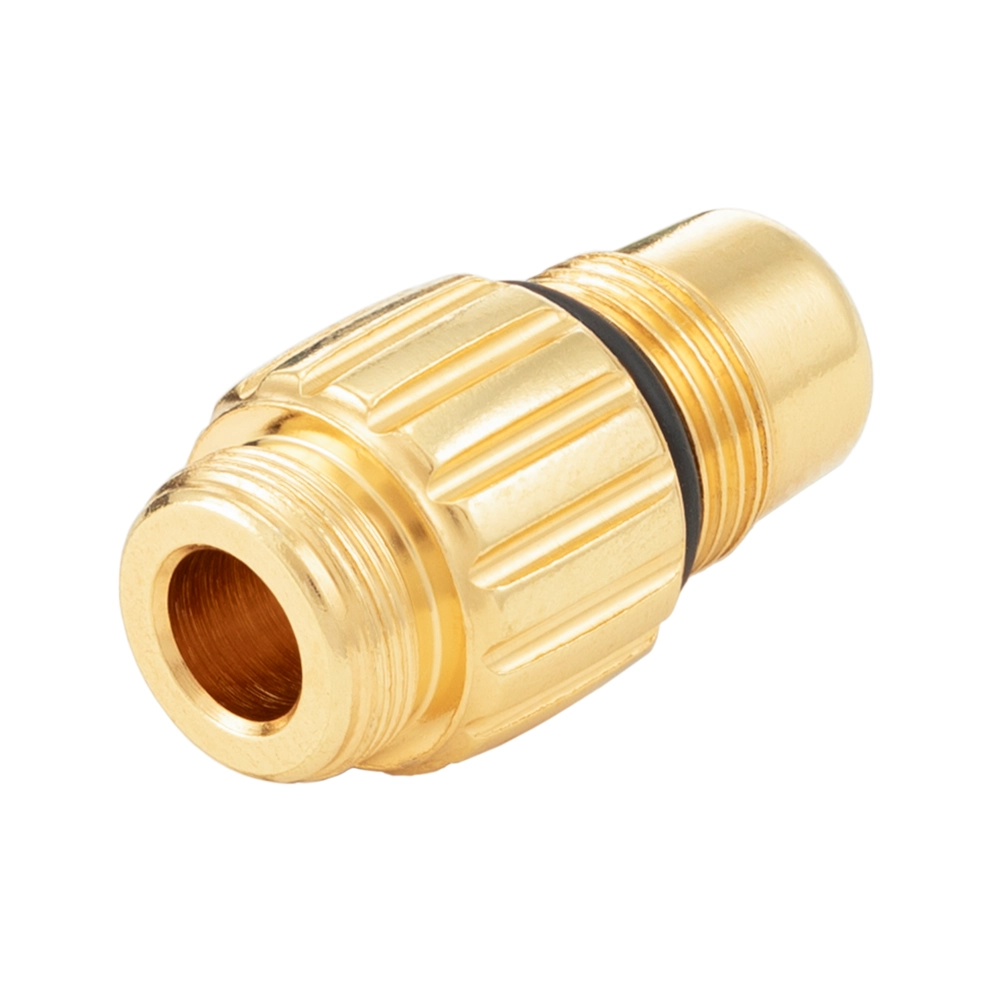

712310 - EVOLUTION 2024 Middle Piece

712312 - INFINITY/ EVOLUTION 2024 2ml Cup

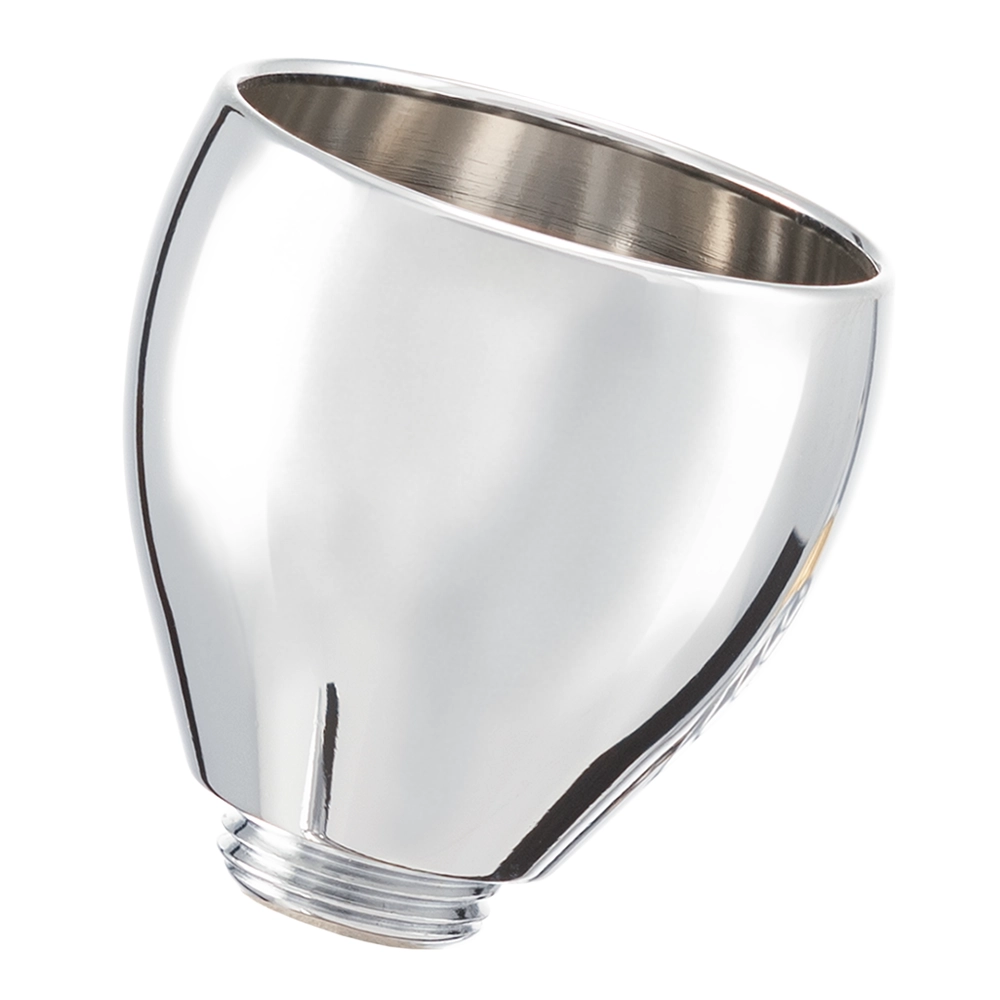

712315 - EVOLUTION 2024 5ml Cup

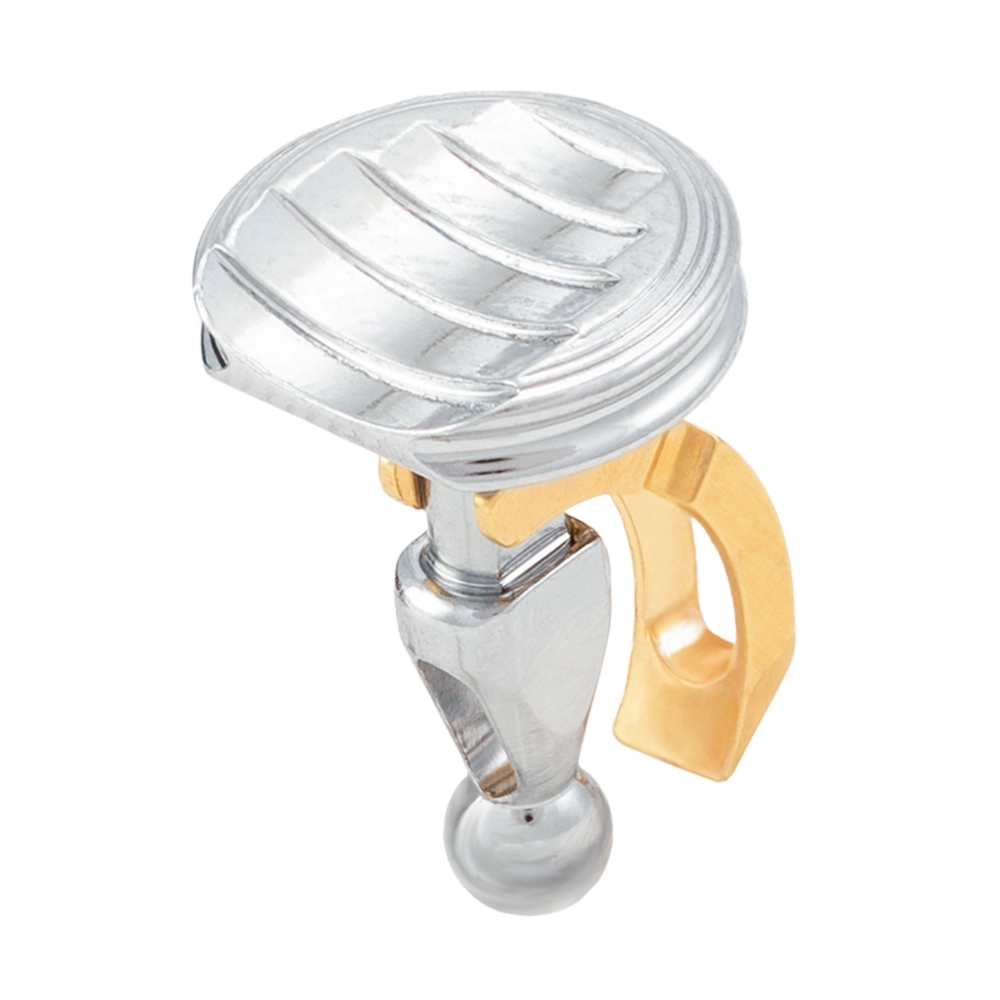

712320 - EVOLUTION 2024 Trigger

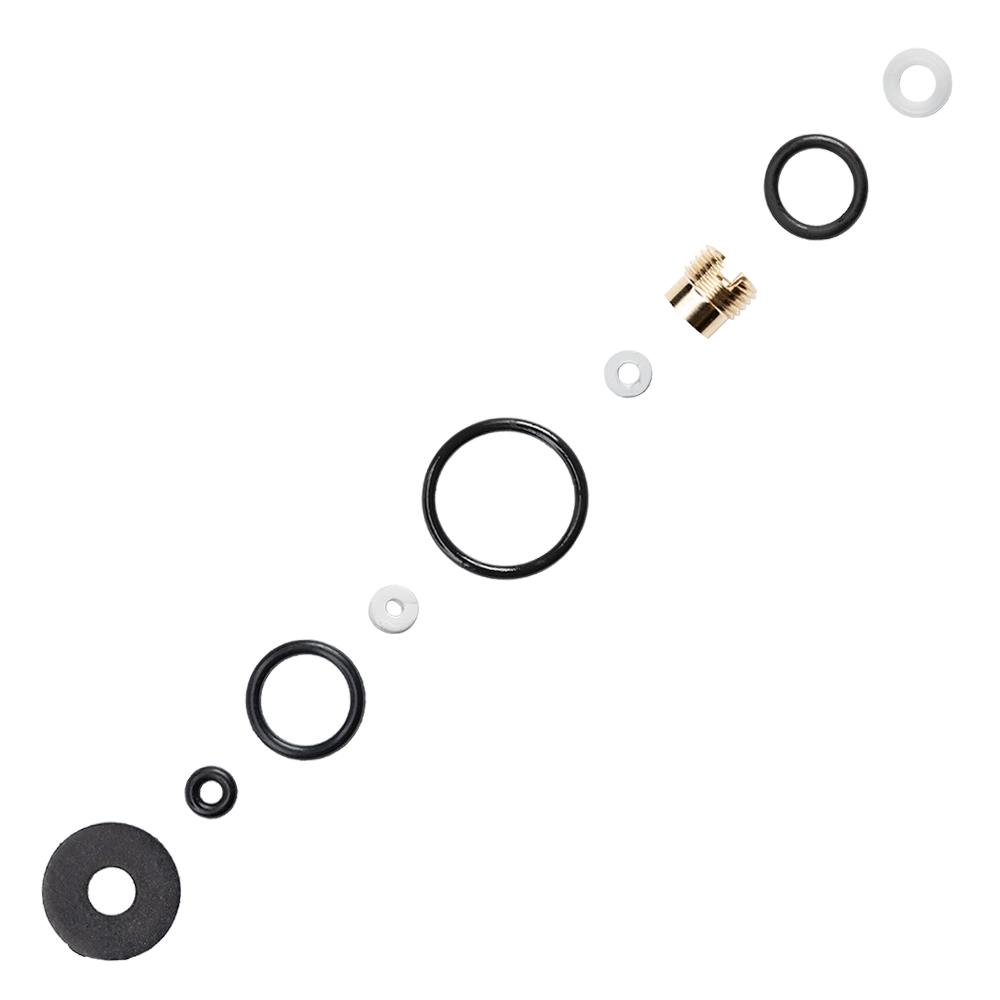

712330 - EVO 2024 seal kit

712362 - EVO 2024 0,28mm FineLine Headset with nozzle, needle, aircap, seals

712364 - EVO 2024 0,45mm FineLine Headset with nozzle, needle, aircap, seals

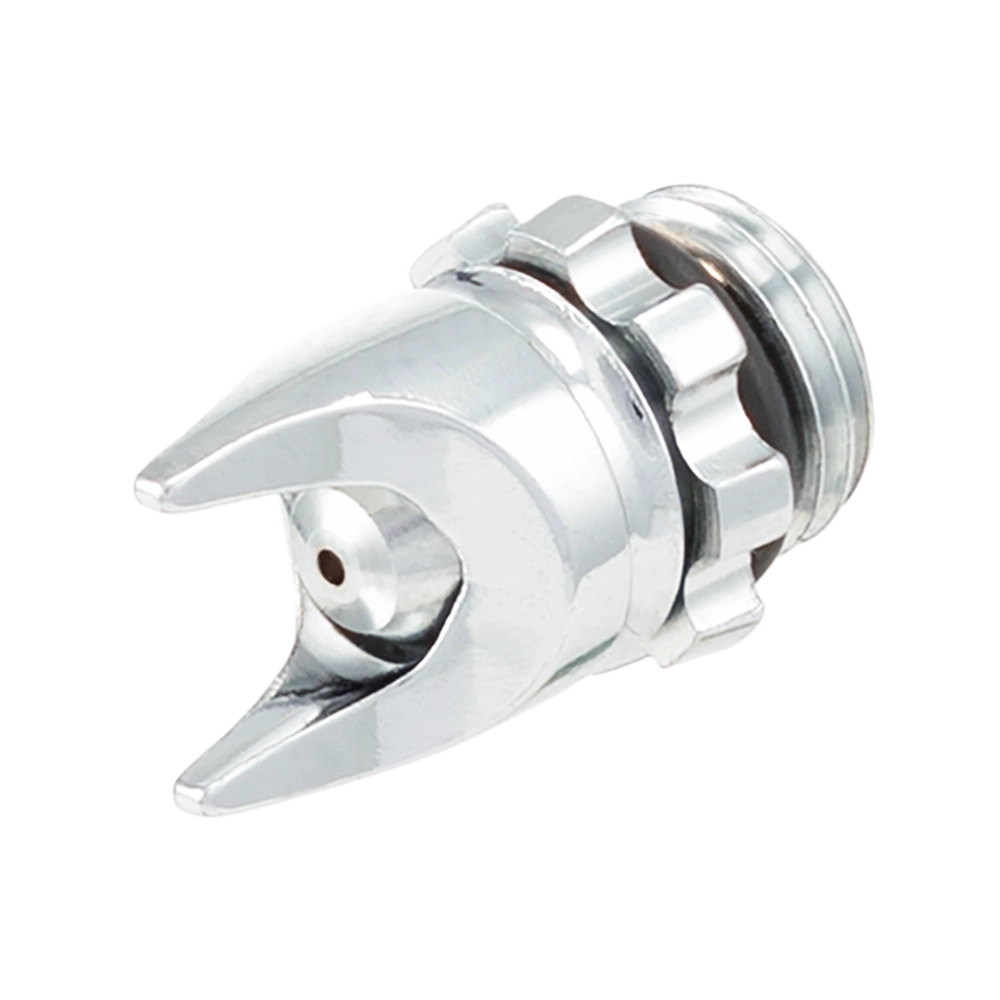

712392 - EVO 2024 0.28mm FineLine Aircap with Seal & Needle Cap

712394 - EVO 2024 0.45mm FineLine Aircap with Seal & Needle Cap

712398 - EVO 2024 Needle Cap

712412 - EVO 2ml Cup Lid

712415 - EVO 5ml Cup Lid

702382 - 2024 0,28mm Nozzle with Seal

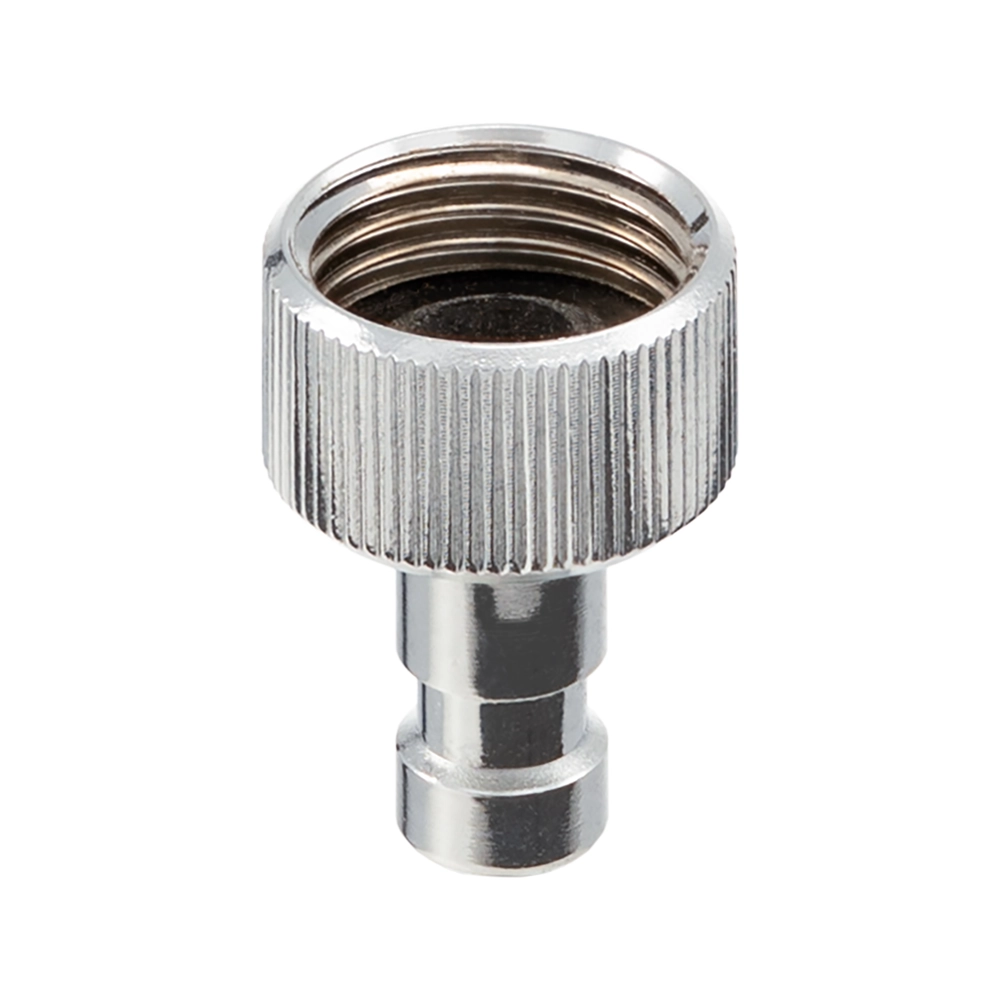

104064 - Quick Disconnect Nipple complete

702325 - Airvalve assembly complete

702327 - Airvalve spare kit

702331 - PTFE Needle Seal with Screw

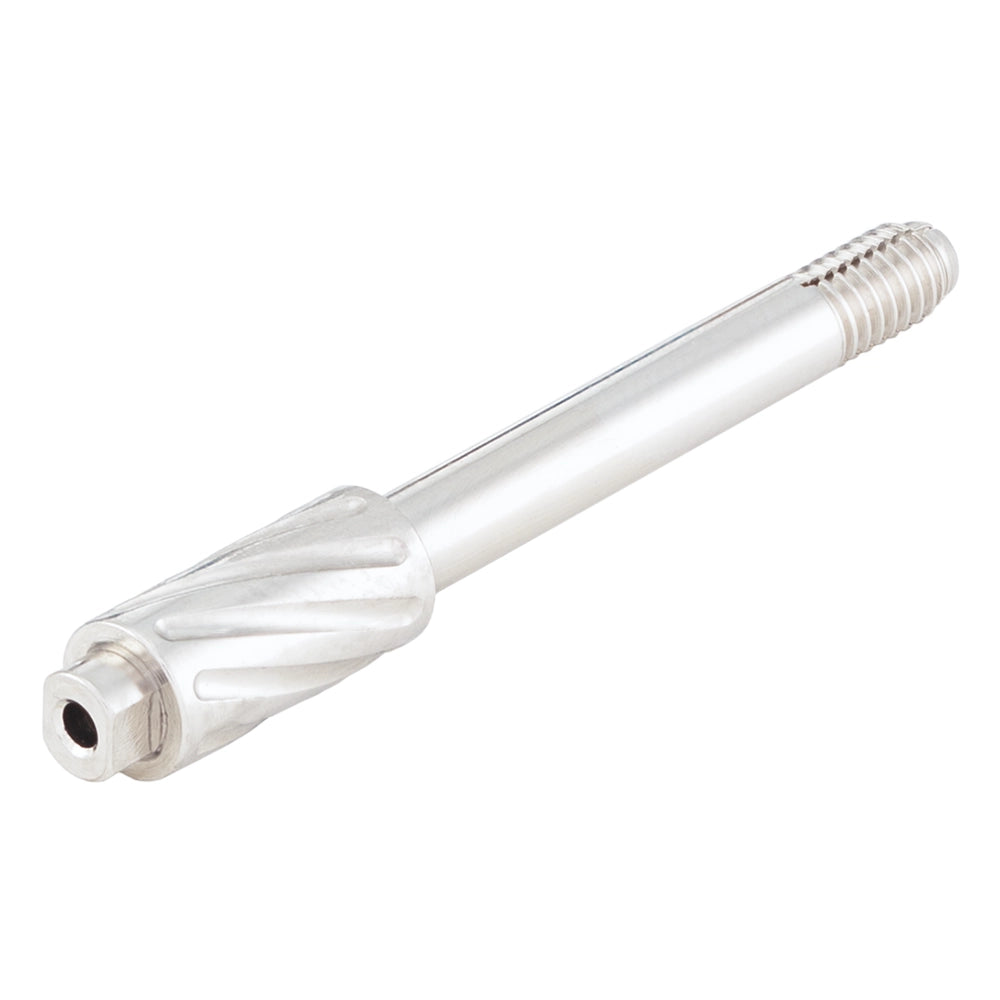

702340 - ULTRA/ EVO 2024 Needle Guide

702384 - 2024 0.45mm Nozzle with Seal

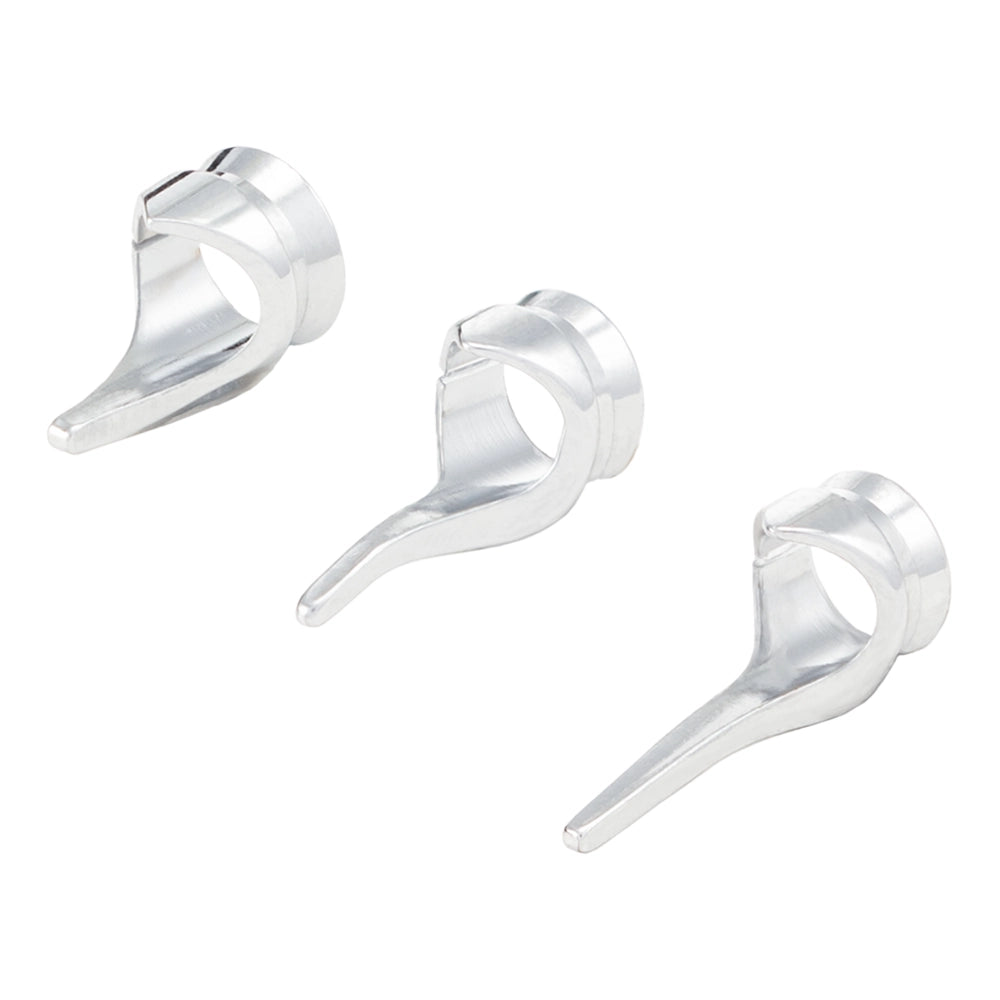

126934 - INFINITY/ EVO 2024 Sketching Cap Set of 3 S, M & L

702372 - 0.2x mm Needle for all

702374 - 0.4x mm Needle for all

712314 - INFINITY/ EVO 4ml Cup

712343 - INFINITY/ EVO 2024 Needle Clamp Nut

722311 - INFINITY/ EVO Mini Cup

712350 - EVO 2024 Trigger complete & spring

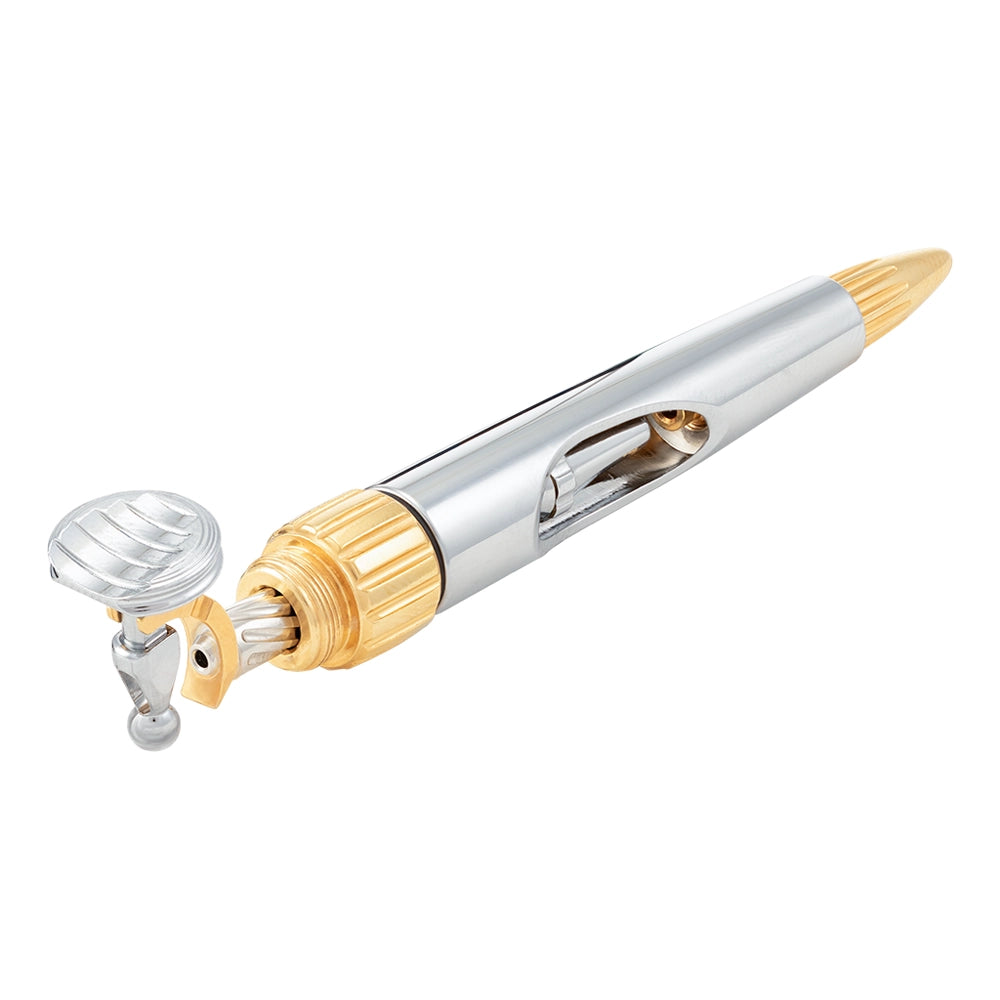

712351 - EVO 2024 Complete Back end incl Trigger
